皮帶輸送機常用于輸送零散的小零件及重量在100kg以下的物品。在組裝、包裝生產線，以及象食品、醫藥等需要無污染的行業得到廣泛應用。
輸送機的皮帶常采用PVC/PU帶，機架常用碳鋼及鋁型材，在潮濕或食品、醫藥等行業則用不銹鋼板。驅動方式一般有電機驅動及電動滾筒驅動二種，速度在3m/min-30m/min之間。采用變頻器調速，變速比達1：3。
皮帶輸送機除常見的水平輸送外，根據輸送要求，可制造成轉彎式、傾斜式、帶擋板大傾斜式（爬坡皮帶機）、變幅式、側翻式等各種型式。
采用PLC控制，變頻器驅動，我們開發出了長達180米的超長皮帶機。
皮帶輸送機的常見參數如下：
寬度 100mm-1000mm
單元長度 1000mm-10000mm
速度 3m/min-30m/min
驅動方式 電動機、電動滾筒
皮帶材料 PVC/PU/橡膠
機架材料 碳鋼、鋁型材、不銹鋼
搬運能力 100kg/m

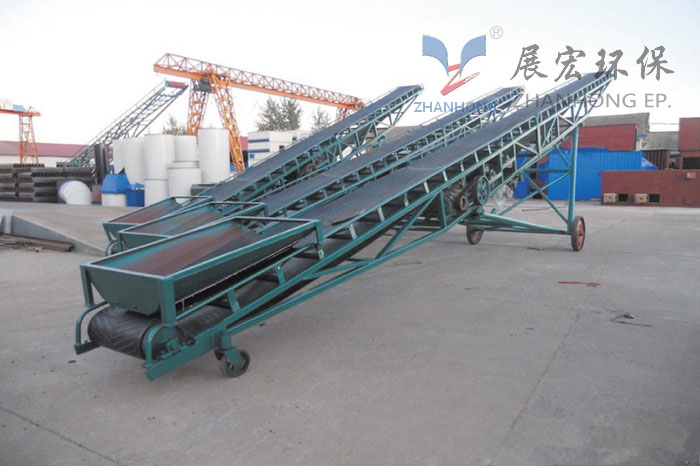

Belt conveyor
The belt conveyor can transport a wide variety of materials with various structures and forms, which can meet the special requirements of oil resistance, heat resistance, corrosion resistance and anti-static, etc.
Belt conveyor is often used to transport scattered small parts and items that the weight of less than 100kg. It is widely used in assembly and packaging production lines, as well as industries requiring no pollution, such as food and medicine. Conveyor belt often use PVC/PU belt, frame commonly used carbon steel and aluminum profile, in wet or food, medicine and other industries with stainless steel plate.
In addition to the common horizontal transport, according to the transport requirements, can be manufactured into a turning type, tilt type, with baffle large tilt type (climbing belt), amplitude type, rollover and other types.
With PLC control and frequency converter drive, we have developed an ultra-long belt machine with a length of 180 meters.
Common parameters of belt conveyor are as follows:
Width of 100 mm - 1000 mm
Unit length is 1000mm-10000mm
The speed of 3 m/min - 30 m/min
Drive mode motor, electric roller
PVC/PU/ rubber belt material
Frame material carbon steel, aluminum profile, stainless steel
Carrying capacity is 100kg/m
