BLM-Y型脈沖布筒除塵器，采用圓筒型切向進風，有利于降低設備阻力。減輕濾袋負高，具有除塵效率高、操作使用方便、維修簡單等特點，適用于糧食食品、飼料、建材、化工、醫藥、冶金等行業的通風除塵、粉塵回收以滿足現代化環境保護的要求。TBLM、BLM系列脈沖布筒濾塵器是我公司集國內同類產品特長，并消化吸收國外先進技術，經過精心設計、反復實踐達到國際先進水平的產品，為國內首創。我公司生產的各種濾塵器，操作維修方便、性能可靠、噪音小、電耗低、品種規格齊全、應用范圍廣泛。清灰系統采用電子控制脈沖噴吹，較機械控制更能靈活方便地調節脈沖寬度和脈沖周期。本設備經環保部門多次檢測，除塵效率達99%以上，產品暢銷全國各地，深得用戶信賴。同時我公司承接各種非定型除塵器的設計制造。
TBLM-Ⅰ系列脈沖布筒除塵器
TBLM-Ⅰ系列脈沖布筒除塵器是TBLM型的改進產品。它除了具有TBLM型的優點這外，由于下箱體排灰結構改為平底刮板方式，降低了機體高度，排灰效果更加優越，結構更緊湊，可廣泛應用糧食、化工、建材、醫藥、冶金等行業的通風除塵和粉塵回收。

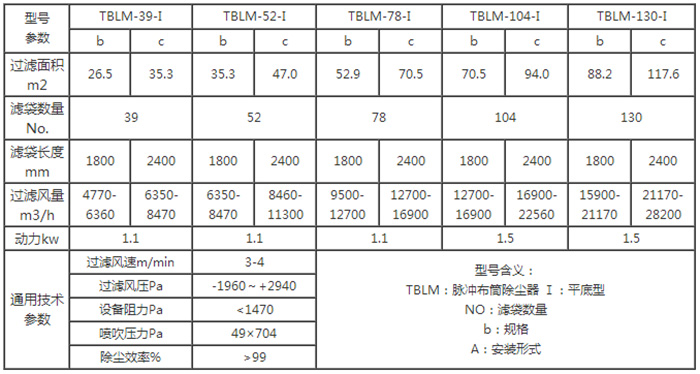

主要技術參數：

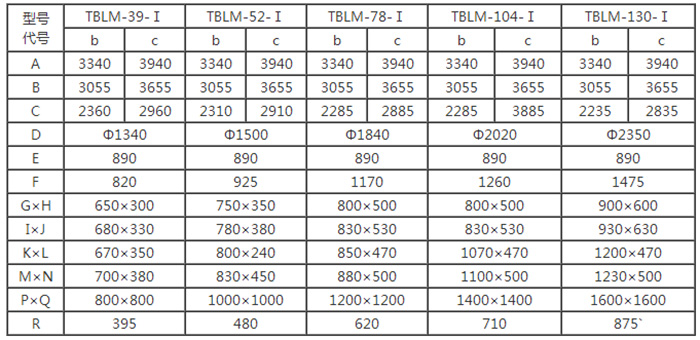

外形尺寸表
BLM-Y系列脈沖布筒除塵器
BLM-Y型脈沖布筒除塵器，采用圓筒型切向進風，有利于降低設備阻力。減輕濾袋負高，具有除塵效率高、操作使用方便、維修簡單等特點，適用于糧食食品、飼料、建材、化工、醫藥、冶金等行業的通風除塵、粉塵回收以滿足現代化環境保護的要求。

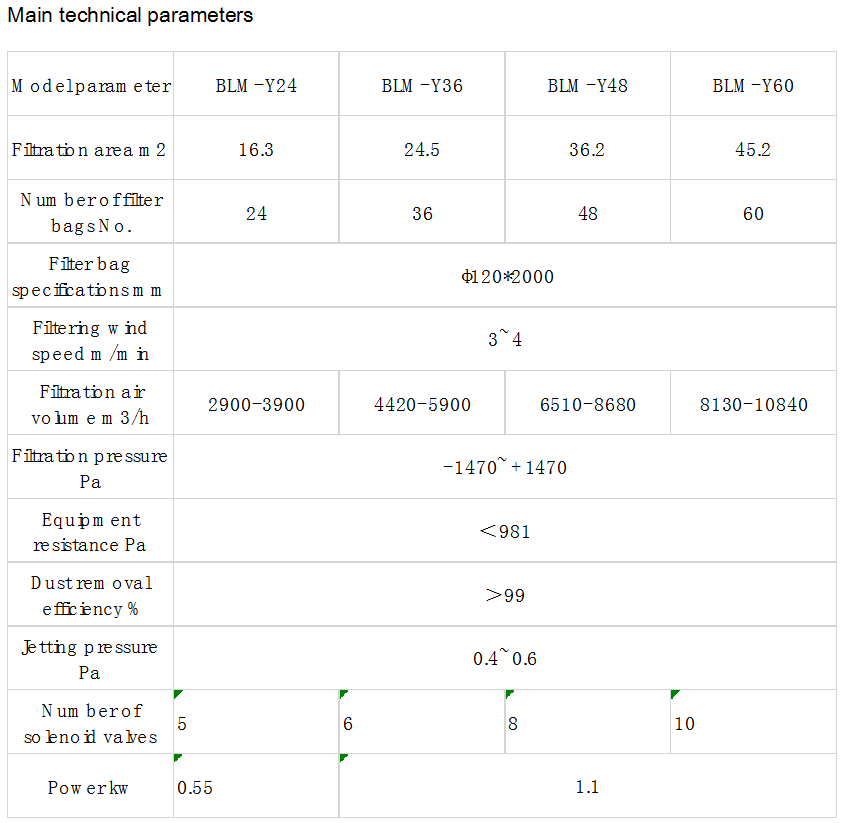

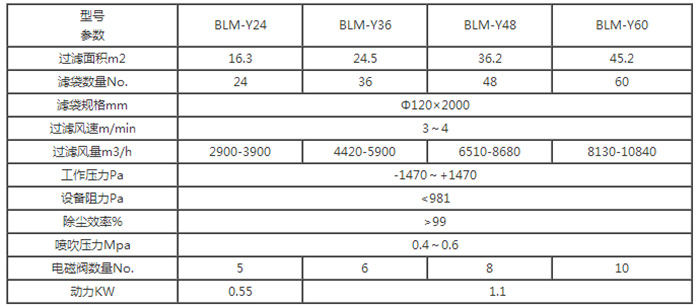

主要技術參數
型號含義：
BLM：脈沖布筒除塵器 Y：圓形 36：濾袋數量級 Ⅱ：安裝形

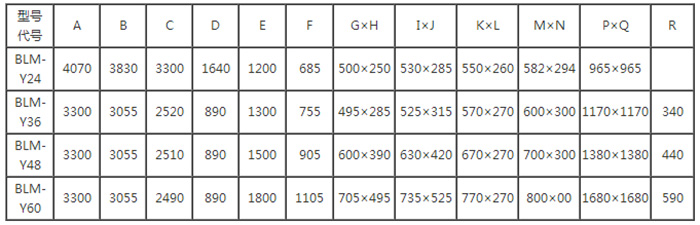

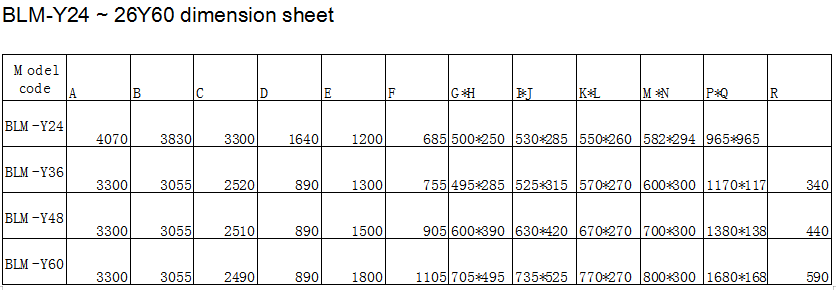

BLM-Y24～26Y60外形尺寸表
BLM-FⅡ系列脈沖布筒除塵器
BLM-FⅡ系列脈沖布筒除塵器是在BLM-FⅠ型的基礎上經改進修改而成的，它除了具有Ⅰ型除塵效率高、處理風量大、性能穩定、操作維修方便等特點外，還具有比I型使用效果好不易積粉、應用范圍廣等特點，廣泛適用于糧食、食品、飼料、冶金、化工、建材、醫藥等行業的通風除塵和粉塵回收。

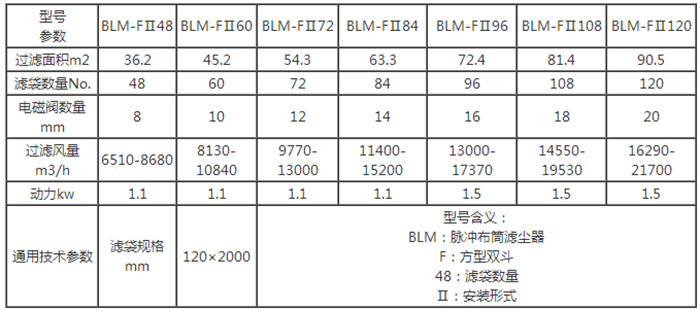

主要技術參數

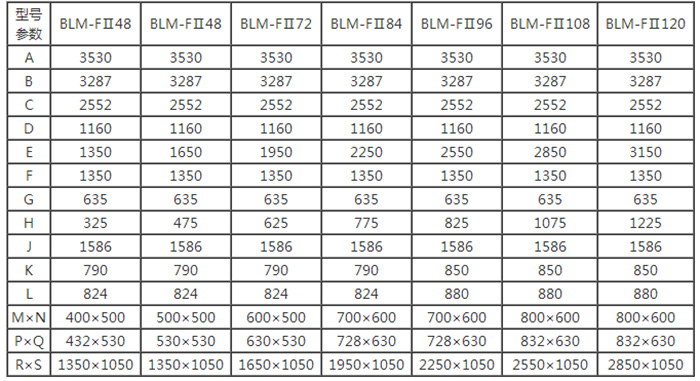

外形尺寸表
Dust collector
BLM-Y type pulsed cloth barrel dust collector adopts cylindrical tangential air inlet, which is beneficial to reduce equipment resistance. It can reduce the negative load of filter bag, and has the characteristics of high dust removal efficiency, convenient operation and maintenance, etc. It is suitable for ventilation dust removal and dust recovery in grain food, feed, building materials, chemical industry, medicine, metallurgy and other industries to meet the requirements of modern environmental protection. LM and BLM series pulsed cloth filter is developed by our company, which integrates the advantages of similar domestic products, digests and absorbs advanced foreign technologies, and achieves the international advanced level of products after careful design and repeated practice, which is the first of its kind in China. All kinds of dust filters produced by our company are easy to operate and maintain, reliable in performance, low in noise, low in power consumption, complete in variety and specification, and widely used. The ash cleaning system adopts the electronic control pulse blowing, which can adjust the pulse width and pulse period more flexibly and conveniently than the mechanical control. The equipment has been tested many times by the environmental protection department, and the dust removal efficiency is more than 99%. The products sell well all over the country and have won the trust of users. At the same time, our company undertakes the design and manufacture of various non-typed dust collectors.

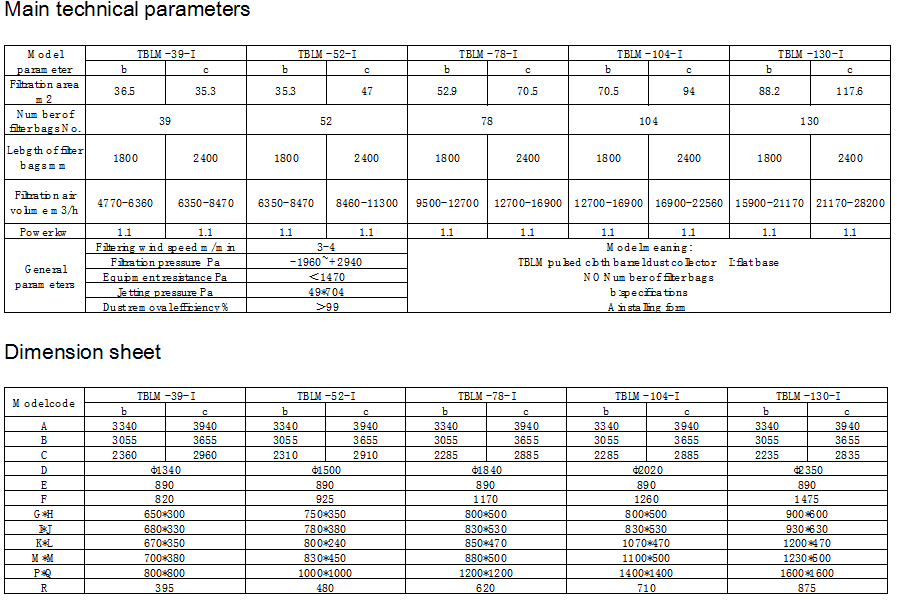

TBLM-I series pulse cloth barrel dust collector
The TBLM-I Series Pulse Cloth Barrel Dust Collector is an improved version of the TBLM type. In addition to the advantages of the TBLM type, it has a superior ash discharge effect and a more compact structure. Since the lower tank ash structure is changed to the flat bottom scraper method, the height of the body is lowered. It can be widely used for ventilation, dust removal and dust recovery in food, chemical, building materials, medicine, metallurgy and other industries.
BLM-Y series pulse cloth barrel dust collector
BLM-Y type pulsed cloth barrel dust collector adopts cylindrical tangential air inlet, which is beneficial to reduce equipment resistance. It can reduce the negative load of filter bag, and has the characteristics of high dust removal efficiency, convenient operation and maintenance, etc. It is suitable for ventilation dust removal and dust recovery in grain food, feed, building materials, chemical industry, medicine, metallurgy and other industries to meet the requirements of modern environmental protection.
Model meaning:
BLM: pulse cloth barrel dust collector Y: circular 36: Number of filter bags Ⅱ: installation form

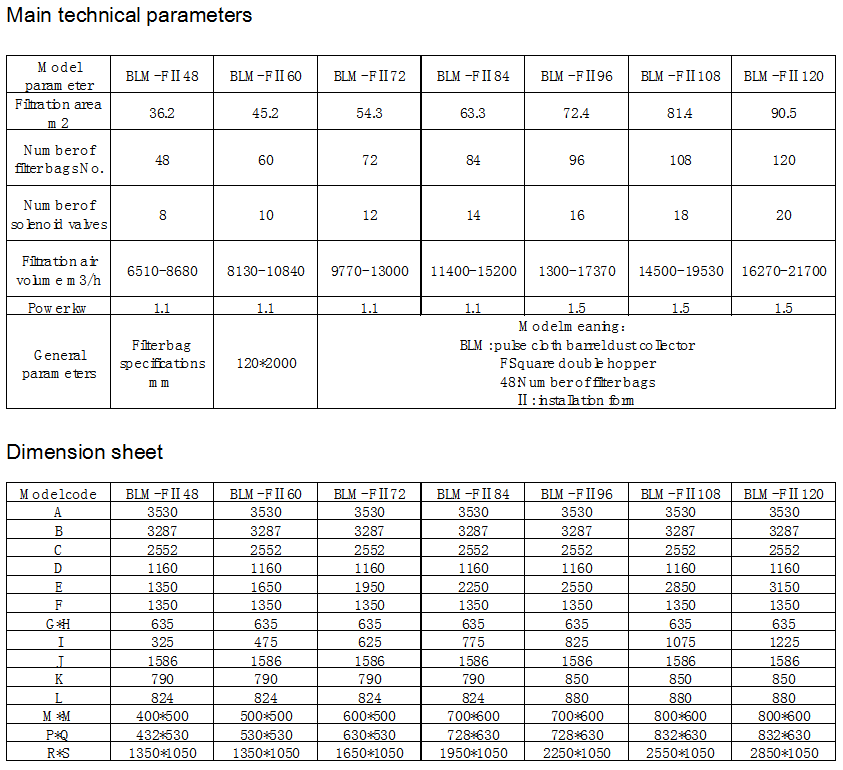

BLM-FII series pulse cloth barrel dust collector
The BLM-FII series has been modified on the basis of the BLM-FI type. It not only has the characteristics of high dust removal efficiency, large air volume, stable performance and convenient operation and maintenance, but also has the characteristics of not easy to accumulate powder and wide application range. It is widely used in grain, food, feed, metallurgy, chemical industry, building materials, medicine and other industries of ventilation dust and dust recovery.
